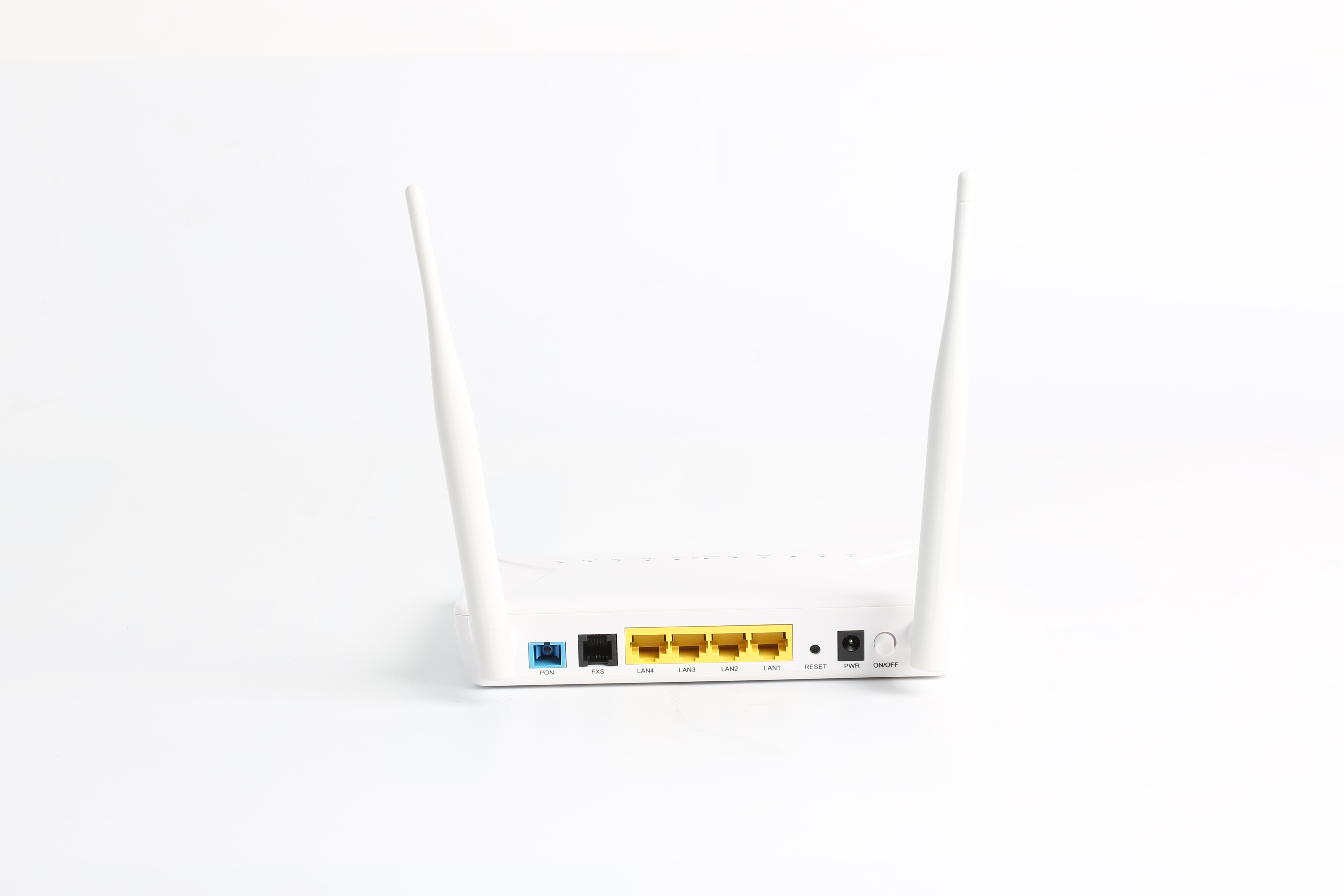

Name: HiOSO EPON ONU 4 Ethernet Port Ftth Solutions Plastic Functional ONT Compatible
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : HA404VW

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, D/P

Supply Ability : 5000pcs/month

Delivery Time : 3-7 work days

Packaging Details : 38X24X18 CM

Product name : EPON ONU

Colour : White

Material : Plastic casing

Rate : 10/100/1000Mbps

Ports : 3FE+1GE+1VOIP+WIFI

Usage : FTTB, FTTH, FTTD, FTTX

Contact Now

Multifunctional Ethernet Ont Wireless Wifi Onu Epon Onu Apply For Ftth Olt

POTS service function

Call protocol: SIP(IMS compatible)/H.248(Megaco)/MGCP optional, seamless compatible with all popular call agent.
Integrate heartbeat function and support active/standby call agent.
Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
Support high/low speed fax, bypass fax, and T38 fax.
Support high speed MODEM(56Kbps) dial access.
Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
Multi-party conferencing.
Line testing according to GR-909.
IP address assignment: dynamic PPPoE/DHCP Client and static IP.
Support WEB, CLI,IVR,TR069.
Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
Call loss less than 0.01%.

WIFI Service Function

Data service function

Technical Parameter

Technical items	Description
PON interface	1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps
Wavelength	EPON Tx 1310nm, EPON Rx 1490nm
Optical interface	SC connector
WLAN	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R One internal antenna and one external antenna
WLAN throughput	100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption
LAN interface	4x 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex / Half Duplex, AUTO-MDIX, RJ45 connectors
Router throughput	Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes
Downstream POTS interface	1 FXS, RJ11 connectors
Indicators	14 indicators, for status of power supply, PON, LAN and POTS .
DC power supply	+12V, external AC-DC power adaptor
Power consumption	≤10W

HiOSO EPON ONU 4 Ethernet Port Ftth Solutions Plastic Functional ONT Compatible
