IEEE802.3at 30W 24 1000M PoE 4 1000M SFP Ports POE Switch 28 Port

Name: IEEE8023at 30W 24 1000M PoE 4 1000M SFP Ports POE Switch 28 Port
Brand: Hioso
Price: 1 USD

China IEEE802.3at 30W 24 1000M PoE 4 1000M SFP Ports POE Switch 28 Port wholesale

Brand Name : Hioso

Model Number : FOWAY1528PFSP

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 4000pcs/month

Delivery Time : 2-12 work days

Packaging Details : 54X32X18 cm

Item : 28 port switch

Mac : 16K learning

Poe : 24 port

Port : 4sfp port

Distance : Cat5:100m

Consumption : 24W

Contact Now

28 Ports 1000M Ethernet PoE Switch 24 1000M PoE + 4 1000M SFP Ports

Overview

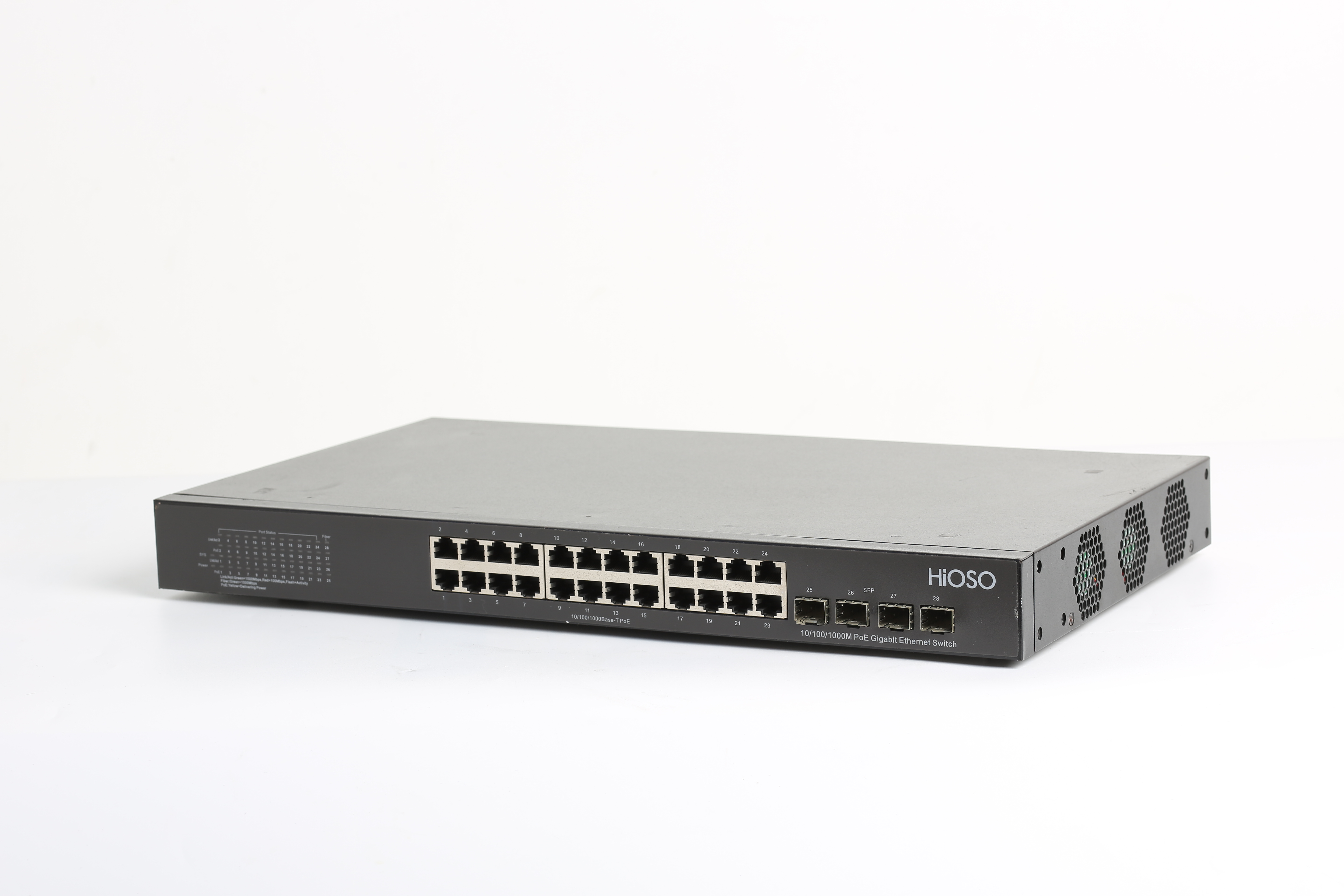

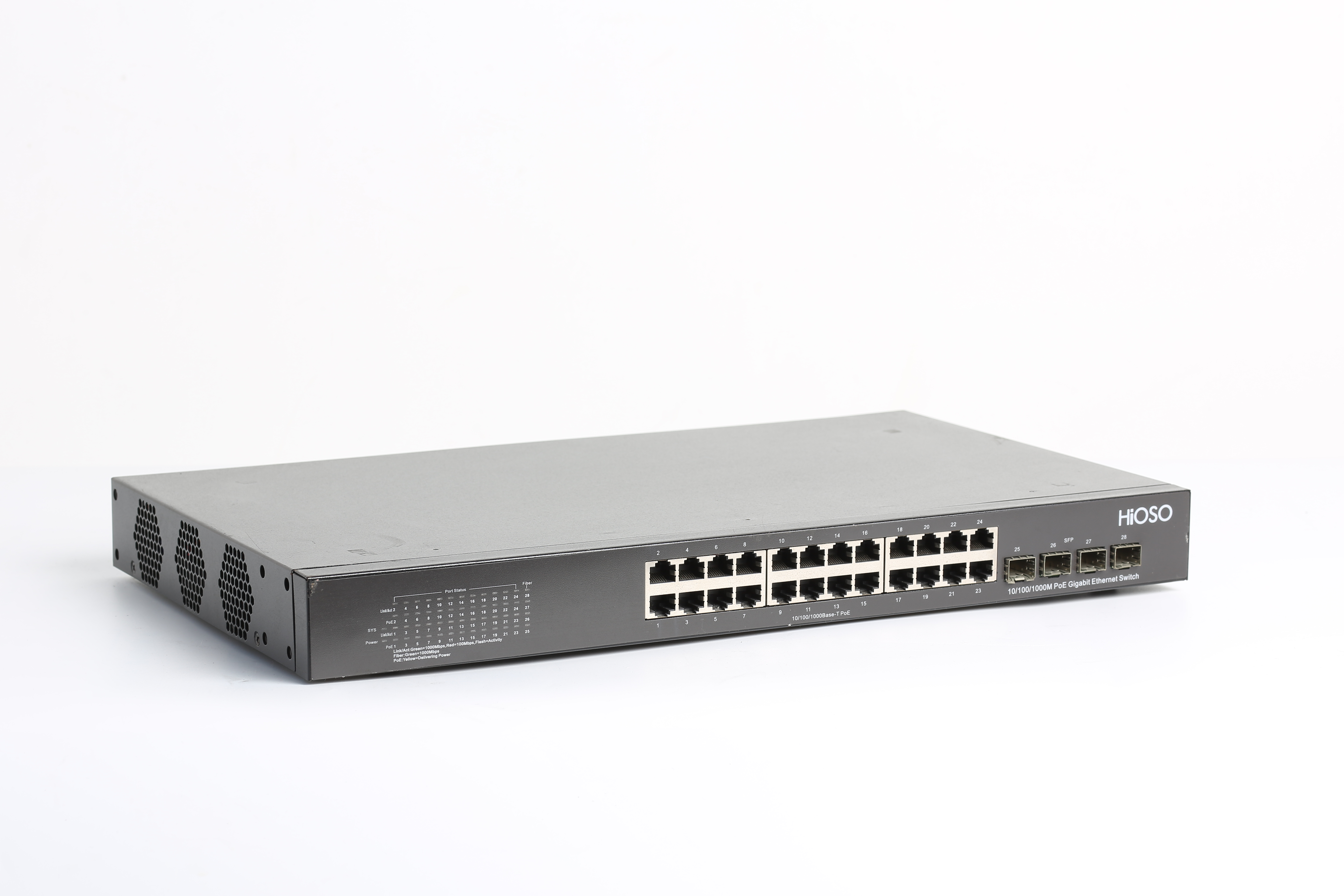

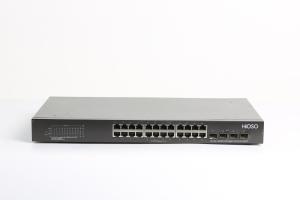

HiOSO FOWAY1528PFSP is 28 ports 1000M PoE Ethernet switch, with 24 10/100/1000M RJ45 PoE ports and 4 1000M SFP uplink ports, include non-managed type and managed type, managed type supports web management and SNMP management(optional).

FOWAY1528PFSP supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.

Character

Support maximum 24 10/100/1000M RJ45 PoE ports and 4 1000M SFP uplink ports
Each PoE port supports to auto discovery the standard power receiving device
Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
Support 1000M port full rate, full-duplex non-blocking forwarding
Support 16K MAC learning, 12Mbits storage and forward cache space, 128G back plane bandwidth

Technical Specification

Parameter	Specification
PoE	PoE ports: 24 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting
Wavelength	SFP Module: 850nm/1310nm/1490nm/1550nm
Distance	1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	24 1000M RJ45 ports (PoE optional): 10/100/1000Mbps 4 1000M SFP ports: 1000M SFP
MAC	16K
Buffer memory space	12Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	AC110V/220V
Power consumption	24W, PoE power supply maximum 370W
Humidity	5%~90% non-condensing
Dimension	44mm (H)×440mm(W)×260mm (D)

Order information

No	Product code	NMS	Ports	PoE ports
1	FOWAY1528PFSP	No	24 1000M RJ45 + 4 1000M SFP	24PoE IEEE802.3af/at 370W
2	FOWAY1528PFSPM	Yes	24 1000M RJ45 + 4 1000M SFP	24PoE IEEE802.3af/at 370W
