2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black

Product Categories

HiOSO Technology Co., Ltd.

Contact Now

Name: 2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : FC1000B

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 6000pcs/month

Delivery Time : 4-7 work days

Packaging Details : 28X15X12 cm

Name : Fiber Converter

MTBF : 100,000 hours

Delay : <1us

Power : AC220/DC 12V

Storage : -40~80℃

Working : -10~55℃

Contact Now

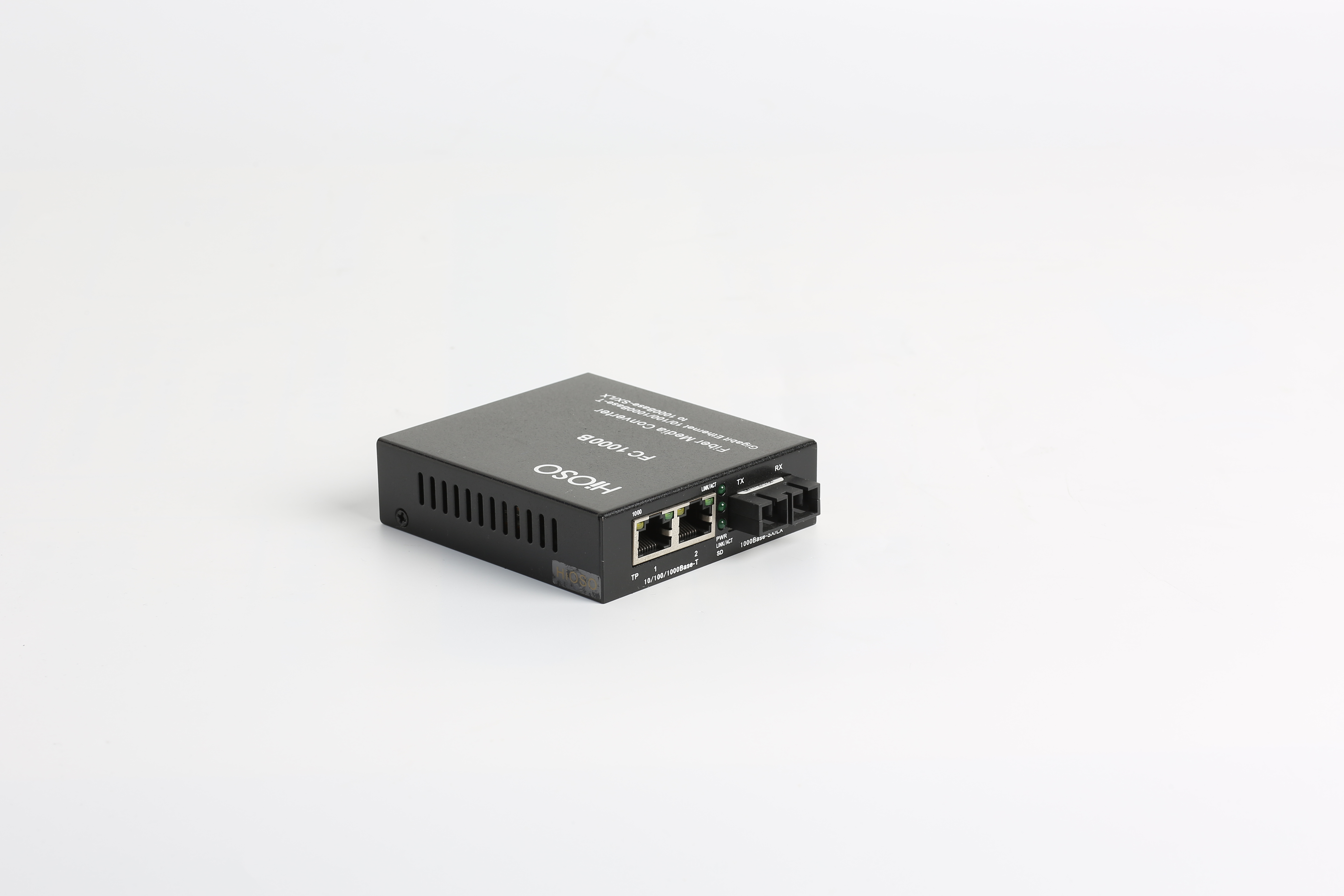

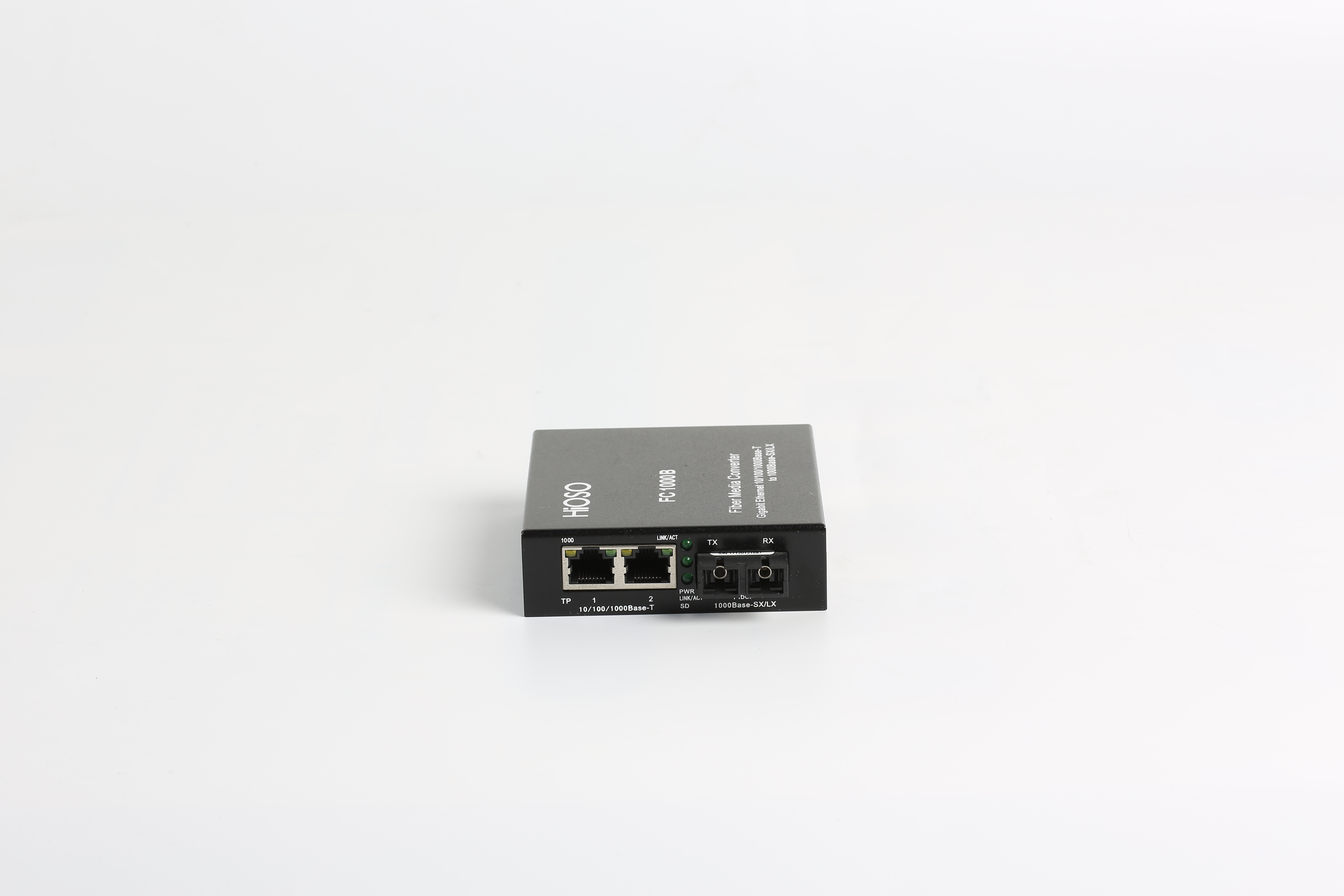

Gigabit Fiber Media Converter 2 1000m Rj45 Ports + 1 1000m Fx Port

Charater

Support conversion between 10Base-T, 100base TX or 1000BASE-T adaptive and 1000base SX / LX
Support full duplex and half duplex transmission mode, automatic negotiation; support twisted pair interface automatic crossing, convenient for system debugging and installation
Support VLAN ultra long packet transmission, support QoS, ensure VoIP packet transmission; support STP spanning tree, constitute redundant network
Supports multiple fiber port options of dual fiber multi-mode, dual fiber single-mode and single fiber single-mode, and expands the needs of users

Technical Specification

Parameters	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Wavelength	850nm/1310nm/1490nm/1550nm
Port	2 RJ45 port: Connected to STP/UTP category-5 twisted pairs 1 fiber port: Dual-fiber multi-mode – SC (fiber size: 50,62.5/125μm) Dual-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
Conversion mode	Medium conversion, storing and forwarding mode
MAC address table	I K
Buffer space	1 Mbit
Delay	<1μs
Bit error rate	<1/1000000000
MTBF	100,000 hours
Power	AC220/DC 12V
Power consumption	3W
Operating temperature	-10~55°C

2 1000m Rj45 Ports 1 1000m Fx Port Gigabit Media Converter Black

FAQ

Q: Can you offer technical support after purchase?

A: Our technical department will be 24h stand by to solve your concerns

Q: Do you accept small quantity order?

A: Yes, we do accept a sample order so customers can test the quality.

Q: What is your lead time for regular items?

A: Normal items, we will have stock to delivery ASAP, for OEM / ODM, PLS feel free to disuse them with our team.
