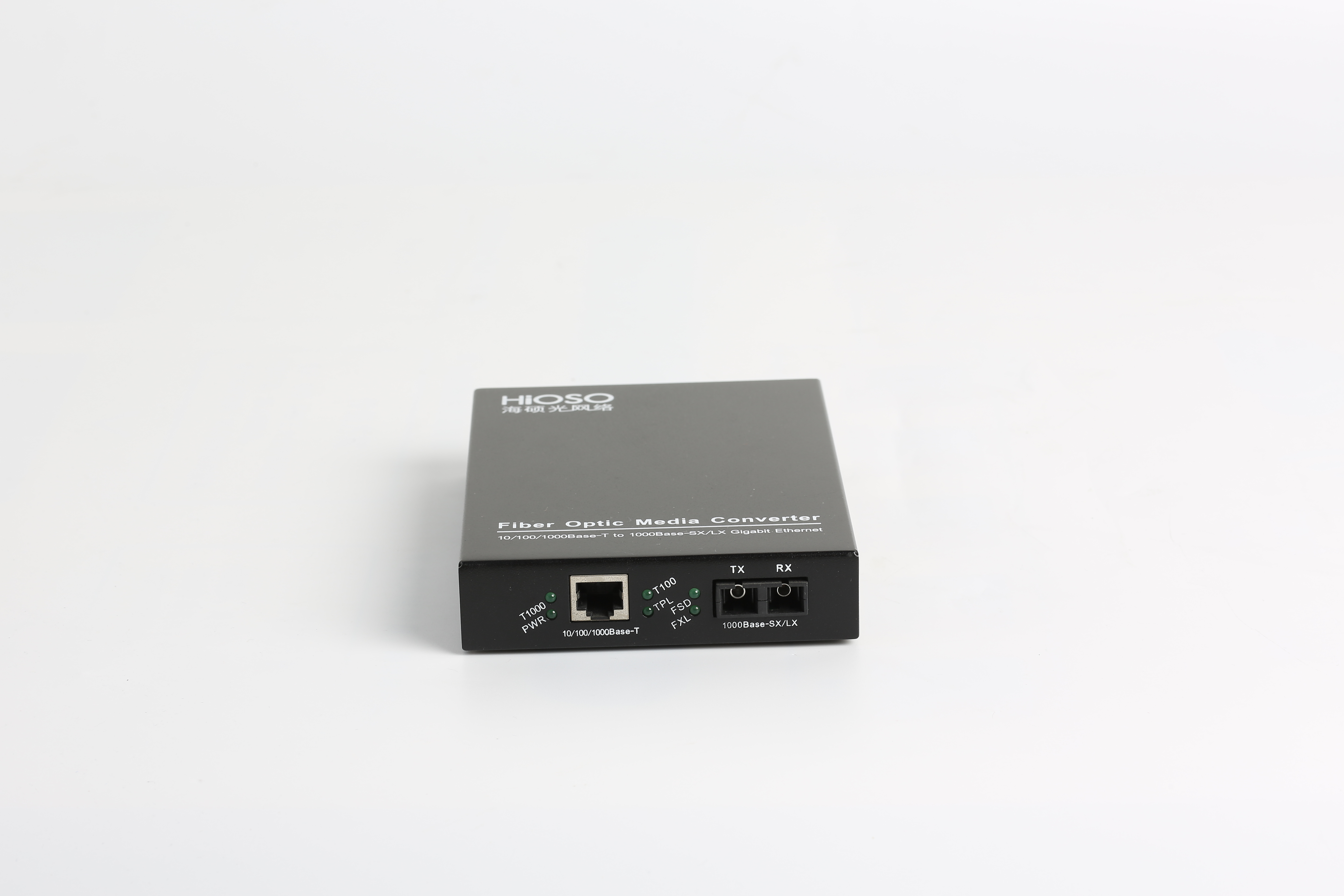

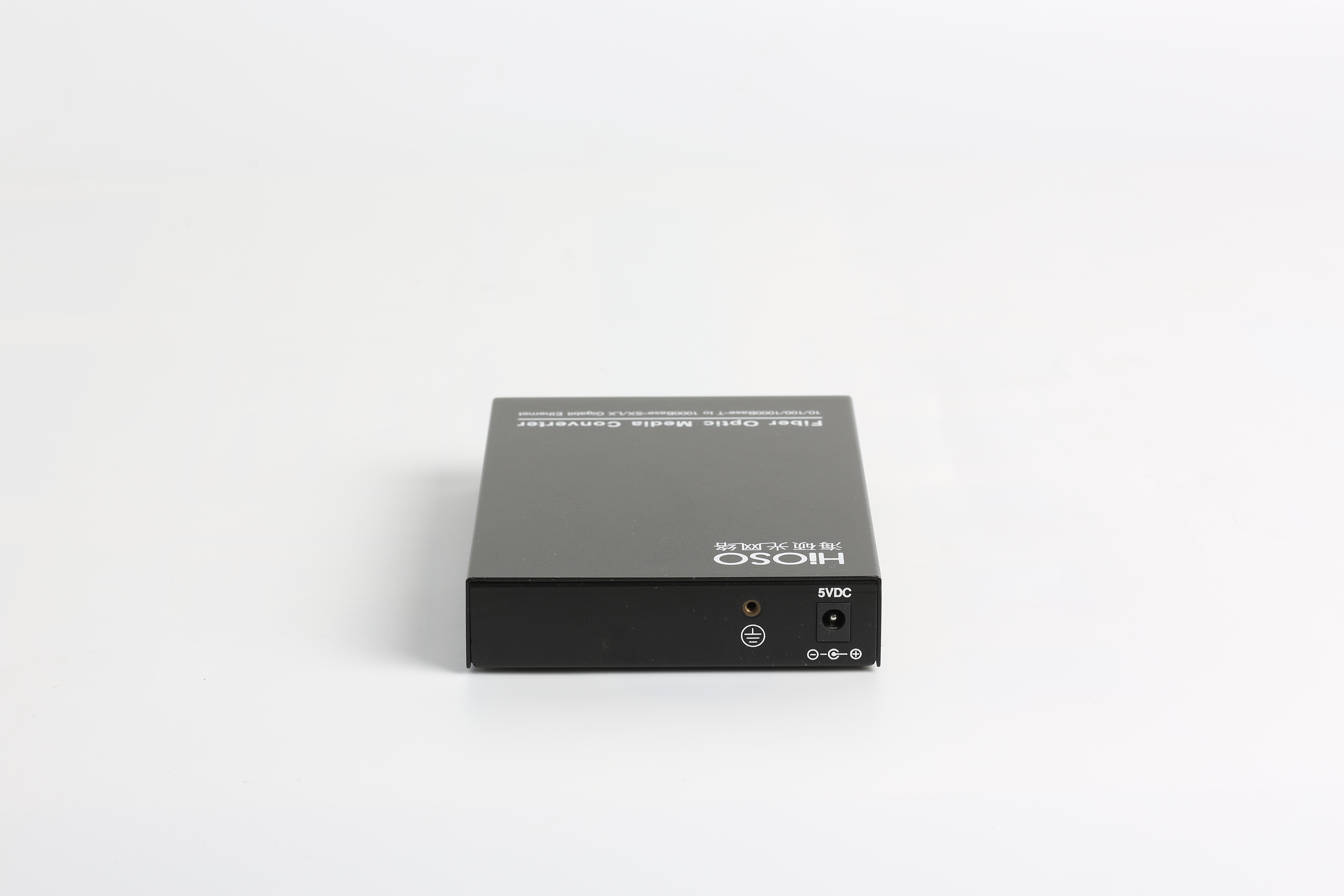

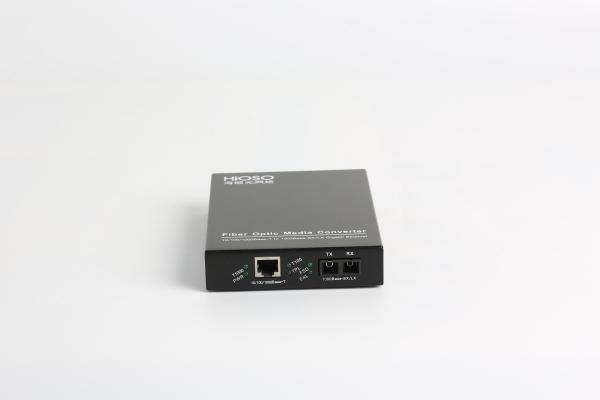

CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management

Name: CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management
Brand: Hioso
Price: 1 USD

China CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management wholesale

Brand Name : Hioso

Model Number : FC830AGM

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000pcs/month

Delivery Time : 2-7 working days

Packaging Details : 35X25X10 cm

Product name : Fiber Media Converter

Wavelength : 850nm/1310nm/1550nm

Standard : IEEE802.3 10Base-T

Access mode : 10/100/1000Mbps

Delay : <1us

Mac : 1K

Contact Now

Fiber Media Converter 1 Fe + 1 Fx Port Gigabit Fast Ethernet Converter

Charater

10/100/1000Mbps adaptive, for the convenience of network upgrade;
Efficient built-in switching core, to implement flow control and reduce broadcast packets;
Supporting full-duplex and half-duplex transmission modes and capable of automatic
negotiation;
Supporting automatic crossing of twisted pair ports, for the convenience of system debugging
and installation;

Technical Specifications

Parameters	Specifications
Access mode	10/100/1000Mbps
Wavelength	850nm/1310nm/1550nm
Conversion mode	Medium conversion, storing and forwarding/straight-through
MAC address table	I K
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half-duplex state: back pressure mode
Delay	<1 us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	POWER (power), FX LINK/ACT (fiber link/action) FDX (FX full-duplex mode), TP LINK/ACT (twisted pair link/action); TP 100 (twisted pair: transmission rate of 100M);FX 100 (fiber: transmission rate of 100M) (external power)
Power	DC5V 1A (external), AC220V / DC48V
Power consumption	<2.5W

CCC Certified 1 FE 1 F Port 1550nm Fiber Media Converter With Management

Company Introduction

HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems.
