Hioso 8 Rj45 TP Ports +2 ge Fiber Uplink Ports Ethernet Access Switch Gigabit Ethernet Switch

Product Categories

HiOSO Technology Co., Ltd.

Contact Now

Name: Hioso 8 Rj45 TP Ports 2 ge Fiber Uplink Ports Ethernet Access Switch Gigabit Ethernet Switch
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : FOWAY1310TFS

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, D/P, L/C, , Western Union

Supply Ability : 2000pcs/month

Delivery Time : 3-10 work days

Packaging Details : 38X24X18 CM

Product Name : 10 ports switch

Mac address : 8K MAC learning

Storage : -40~80℃

Support : VLAN

Working : -10~60℃

Port : 8 100M RJ45 ports : 10/100Mbps 2 1000M SFP: 1 Gbps, 1000M SFP

Contact Now

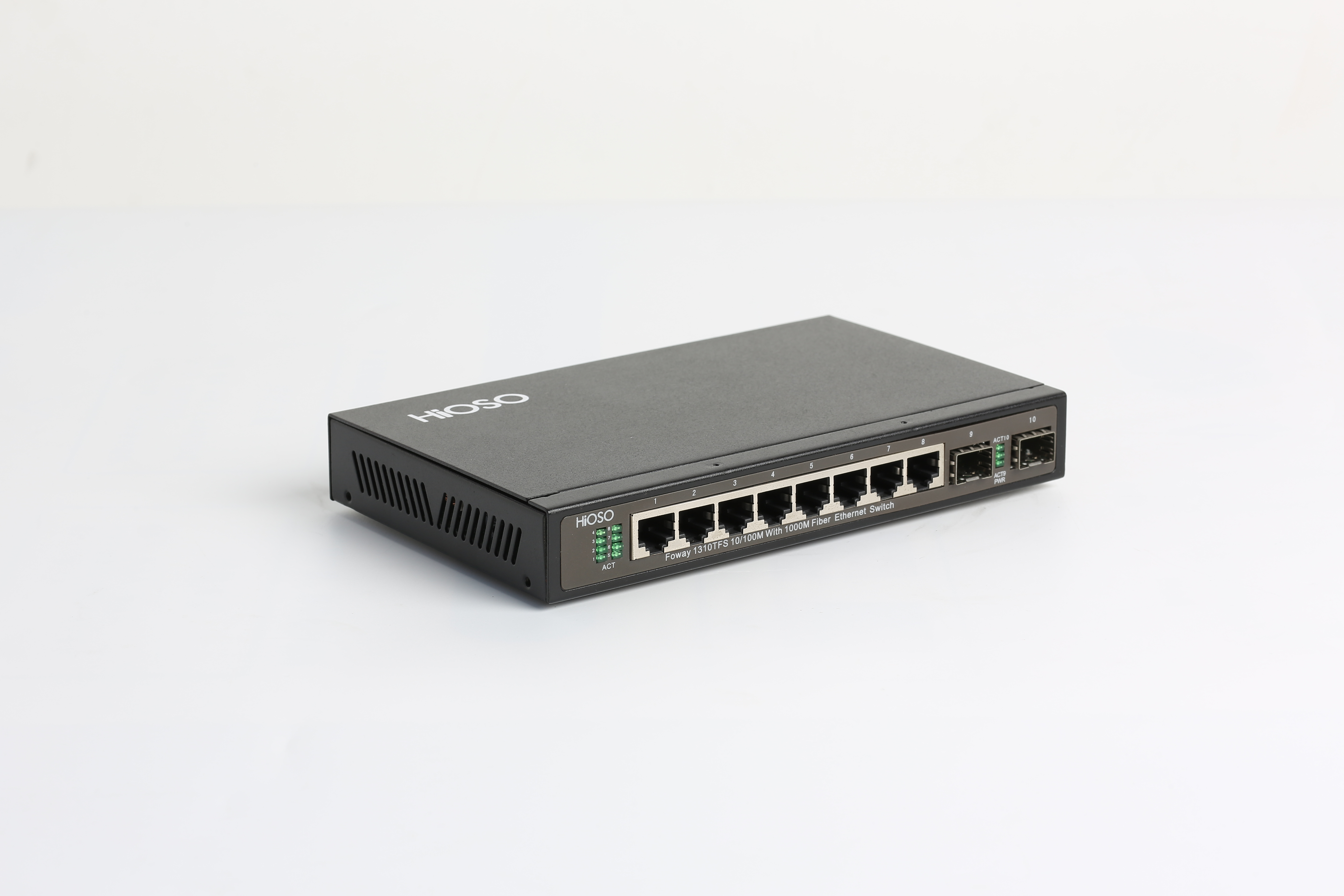

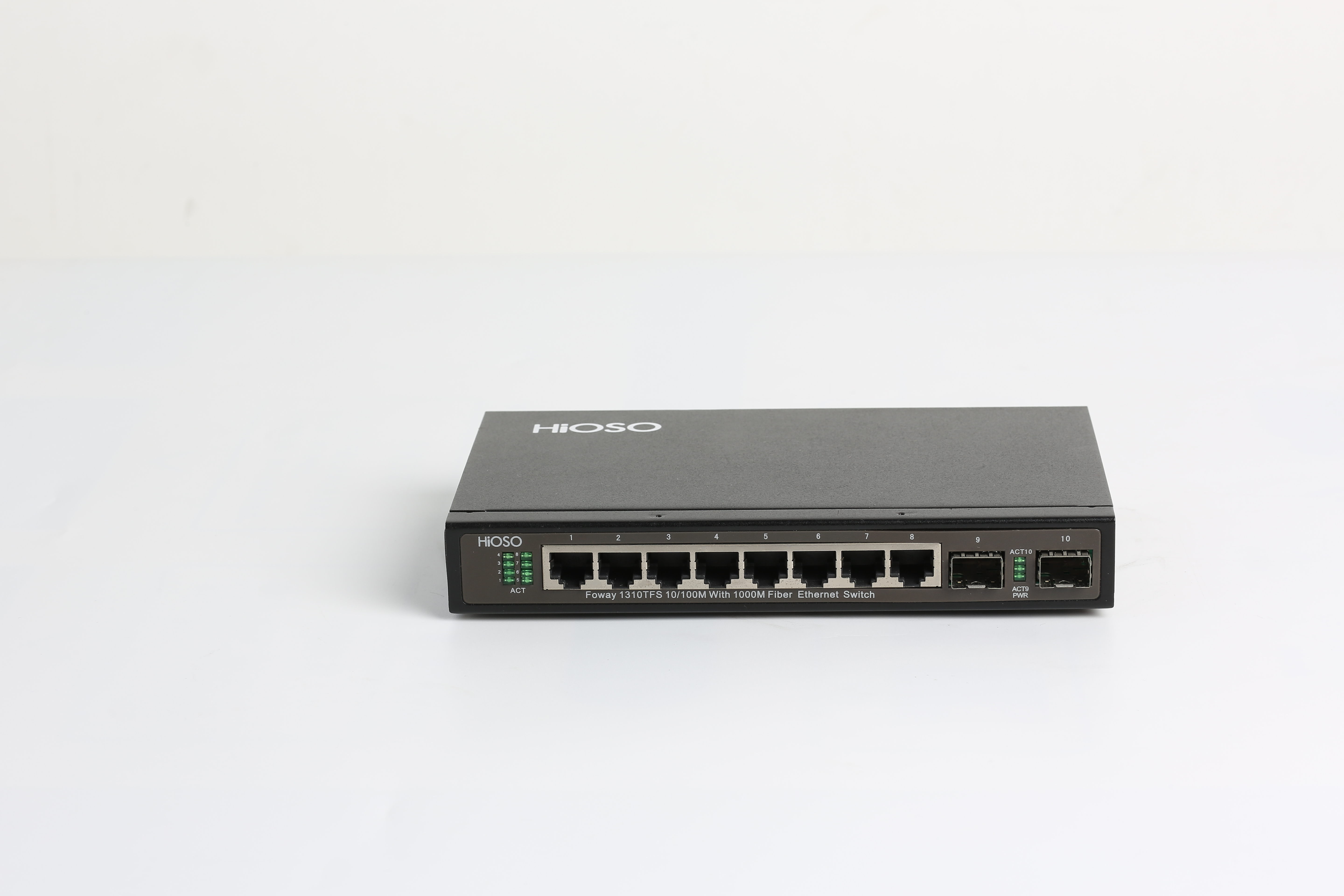

10 Ports Ethernet Access Switch 8 Rj45 Ports + 2 Fiber Uplink Ports

Hioso 8 Rj45 TP Ports +2 ge Fiber Uplink Ports Ethernet Access Switch Gigabit Ethernet Switch

Character

8 10/100M RJ45 ports and 2 1000M SFP fiber uplink port
Gigabit port support Full 1000M rate, full-duplex non-blocking forwarding
8K MAC learning, 1Mbit storage of forward cache space,7.6G back plane bandwidth
Optional to Support Web,CLI ,SNMP management
Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, Port mirroring,Broadcast storm control,loop detection,bandwidth allocation, PPPoE etc.

(Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
(Optional) Wall-mounted hanger, better for installation
Metal casing better for heat dissipating
Optional to choose wide range temperature circuit design

Technical Specification

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control
Distance	RJ45 port: 100m SFP port: Multi-mode: 220m (fiber size 62.5/125μm) /550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km
Port	8 10/100M RJ45 ports ;2 1000M fiber uplink port: SFP uplink port
MAC address	8K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/1A
Power consumption	3.8W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×219mm(W)×119mm (D) (external power) 28mm (H)×239mm(W)×119mm (D) (inside power)

Hioso 8 Rj45 TP Ports +2 ge Fiber Uplink Ports Ethernet Access Switch Gigabit Ethernet Switch

Specification Datasheet Download: FOWAY1310TFS.pdf
