16 Port Gigabit Fiber Core Switch , Single Mode Switch CCC Certification fiber switch

HiOSO Technology Co., Ltd.
Contact Now

16 Port Gigabit Fiber Core Switch , Single Mode Switch CCC Certification fiber switch

Brand Name : Hioso

Model Number : FOWAY1516FSCP

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000pcs/month

Delivery Time : 2-12days

Packaging Details : 44mm (H)×276mm(W)×190mm (D)

Type : FTTx Solutions

Port : 14 1000M SFP + 2 1000M Combo port

Warranty : 3 years

Color : Black

Working temperature : -10~60℃

Humidity : 5%~90% non-condensing

MTBF : 100000 hours

Power : AC110-230V

Contact Now

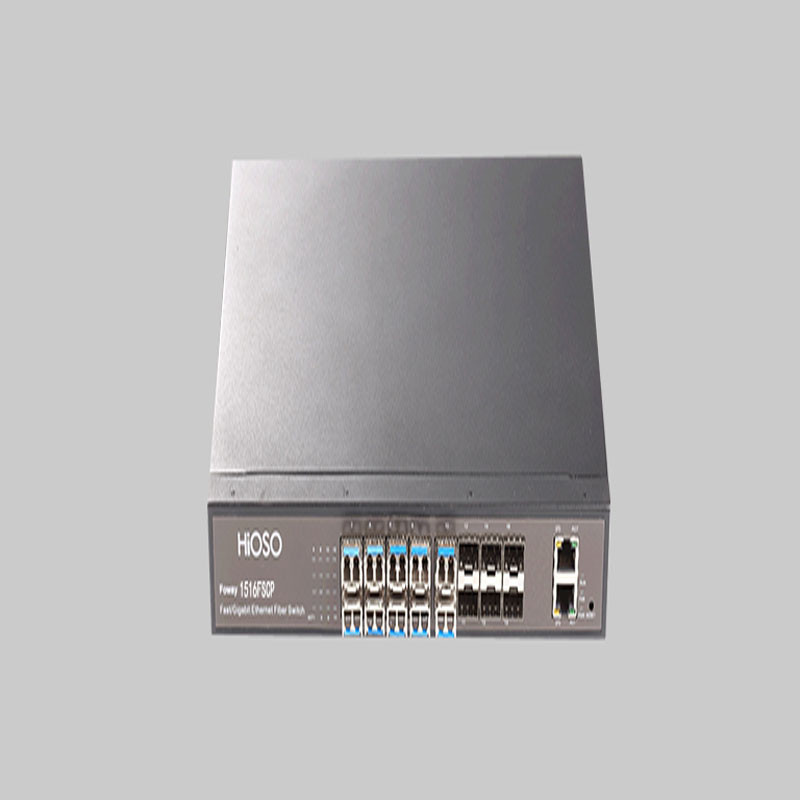

FOWAY1516FSCP 14 1000M SFP + 2 Combo Uplink Fiber Switch

16 Port Gigabit Fiber Core Switch , Single Mode Switch CCC Certification fiber switch16 Port Gigabit Fiber Core Switch , Single Mode Switch CCC Certification fiber switch

Overview

HiOSO FOWAY1516FSCP is a 16 port Gigabit fiber switch, with 14 1000M SFP fiber ports(1000M SFP or the SFP-1000BaseT RJ45 port Optional)and 2 1000M Combo port (100M / 1000M SFP port or 10/100/1000M RJ45 port optional) uplink.

FOWAY1516FSCP supports SFP modules hot plug, and supports to work with other fiber switches, fiber converters and other devices with fiber ports.It supports WEB management and SNMP management Support super network high definition video frequency transmission ability ,Streamlined network structure,it can provide up to 32Gbps switching capacity,the port full wire speed is 96Mpps,it can meet the large-scale network convergence and small medium-sized network core different requirements .

Character

  • Support 14 Gigabit SFP(SFP-1000BaseT ) port access and 2 Gigabit Combo port (1000M SFP port , or 10/100/1000M RJ45 port)
  • Support the default 1000M SFP and the SFP-1000BaseT RJ45 hot plug
  • Support full rate, full-duplex non-blocking forwarding at each port

l Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc

  • Support DHCP,PPPoE,ACL,LLDP
  • Support 4K MAC learning, 2Mbit storage and forward cache space,32G back plane bandwidth,9KByte Large frame forwarding
  • All optic ports, strengthen the an-interference ability
  • Desktop metal casing design(support 1U rack ), ,internal the cooling fan,better for heat dissipation,work stable .

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad Trunk,IEE802.3X Flow Control
Wavelength SFP:850nm/1310nm/1490nm/1550nm
Distance

100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm)

Single-mode: 20/40/60/80/100/120Km

Single-fiber single-mode: 25/40/60/80/100/120Km

1000M SFP Multi-mode: 220m (fiber size 62.5/125μm) / 550m(fiber size 50/125μm)

Single-mode: 10/20/40/60/80/100/120Km

Single-fiber single-mode:10/20/40/60/80/100/120Km
CAT5: 100m

Port

14 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT

2 Gigabit Combo port:: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45

MAC 4K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power AC110-230V
Power consumption 20W

Working

temperature

-10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 44mm (H)×276mm(W)×190mm (D)

Order information

No Type Managed Ports Power
1 FOWAY1516FSCP Not 14 1000M SFP ports +2 Gigabit Combo uplink AC220V
2 FOWAY1516FSCPM Support 14 1000M SFP ports +2 Gigabit Combo uplink AC220V
