CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount

Name: CCC Approval 8 10100M RJ45 Ports Poe Switch Din Rail Mount
Brand: Hioso
Price: 1 USD

China CCC Approval 8 10/100M RJ45 Ports Poe Switch Din Rail Mount wholesale

Brand Name : Hioso

Model Number : Foway4208T

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : TT

Supply Ability : 5000pcs/month

Delivery Time : 2-12 working days

Packaging Details : 25*15*10 cm

Name : Din Rail Switch

Ports : 8 FE ports

Transmisson rate : 100Mbps

MTBF : 100,000 hours

MAC : 4K

Delay : 9.6us

Contact Now

8 Ports Din Rail Ethernet Switch Supply 8 10 / 100M RJ45 Ports

Overview

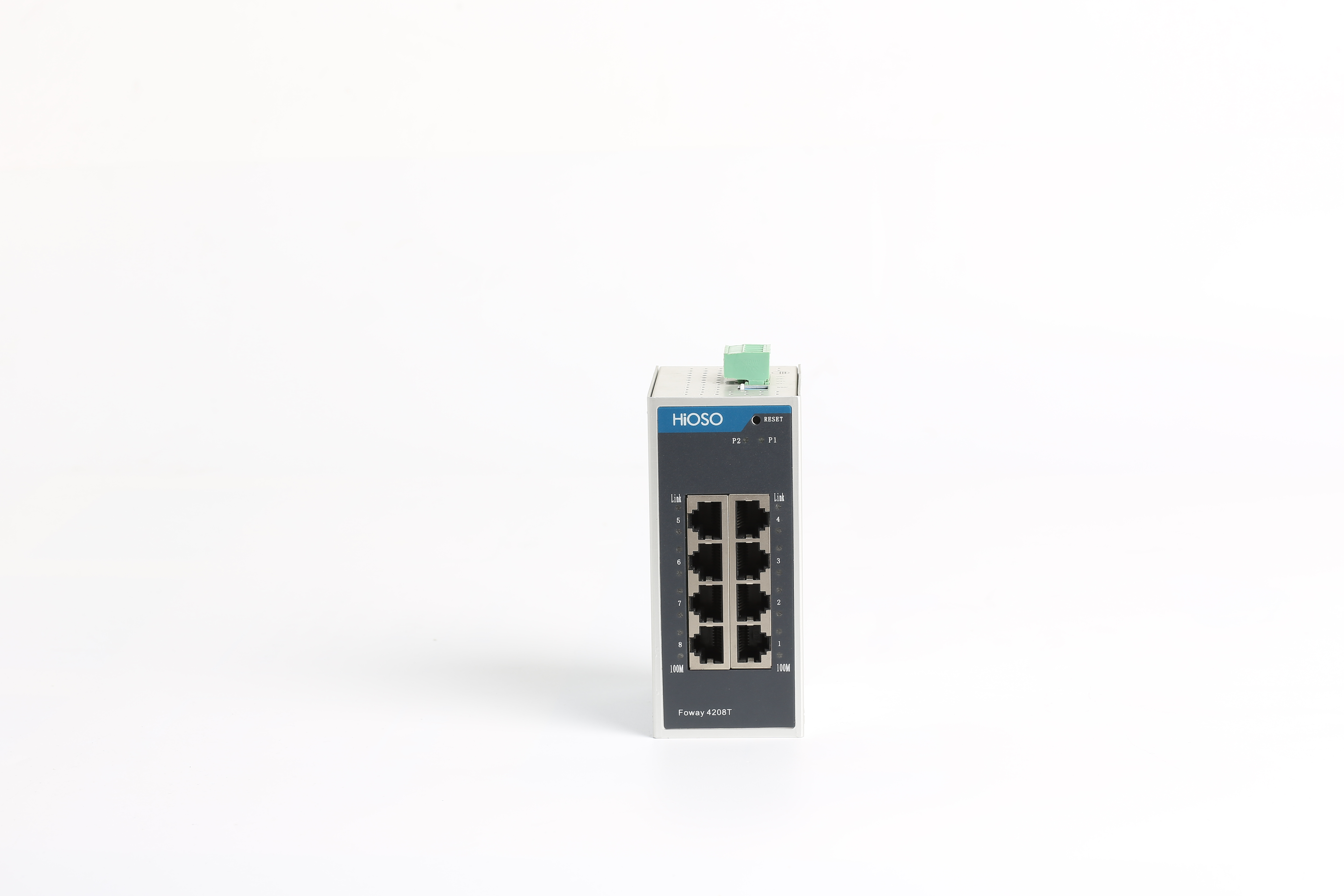

Foway 4208T series 8 ports Din Rail Type Industrial Ethernet switch , supply 8 10/100M RJ45 ports; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC; support to connect DC power and AC power at the same time.

Foway 4208T series switches support to work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for most industrial applications. Foway 4205TF series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications.

Charater

10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition

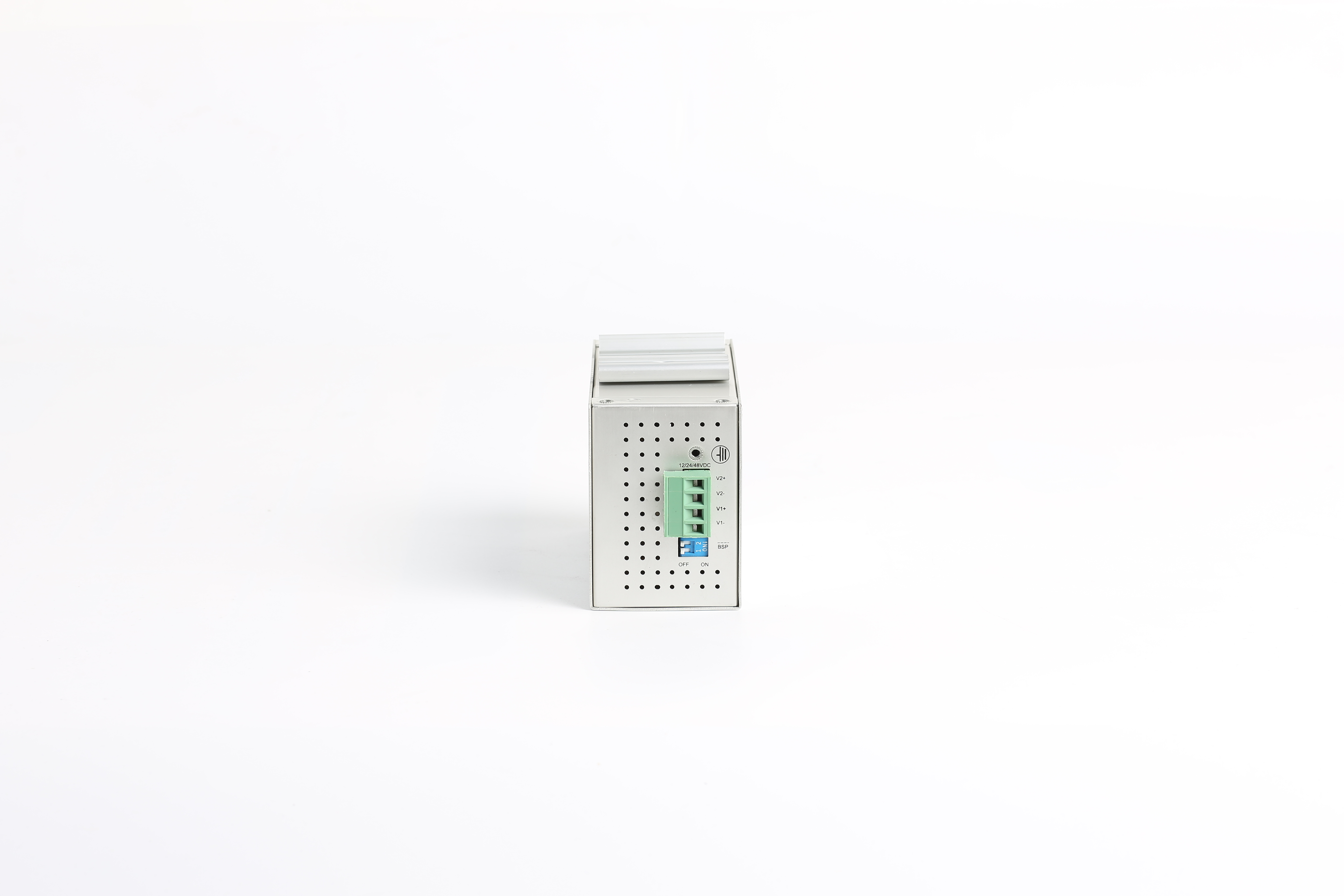

Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection
Support maximum 1552 byte long frame data packet transmission,1.8G back board bandwidth
Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

Parameter	Specification
Access mode	10/100Mbps
Transmission distance	Category-5 twisted pairs: 100m
Port	8 10/100M RJ45 ports: Connected to STP/UTP category-5 twisted pairs
Conversion mode	Medium conversion, storing and forwarding/straight-through
MAC address table	4K
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half-duplex state: back pressure mode
Delay	9.6us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	100M (twisted pair rate 100M), TP1/2/3/4/5/6/7/8 Link(twisted pair link/action); P1 (power supply P1 connected), P2(power supply P2 connected)
Power	12/24/48 VDC,18 ~ 30VAC input
Power consumption	3W
Operating temperature	Normal:-10~60°C ;-T(wide temperature range): -40~75°C
Installation	Din rail installation, wall mounting installation
Dimensions	115mm×50mm×70mm (height * width * depth)
