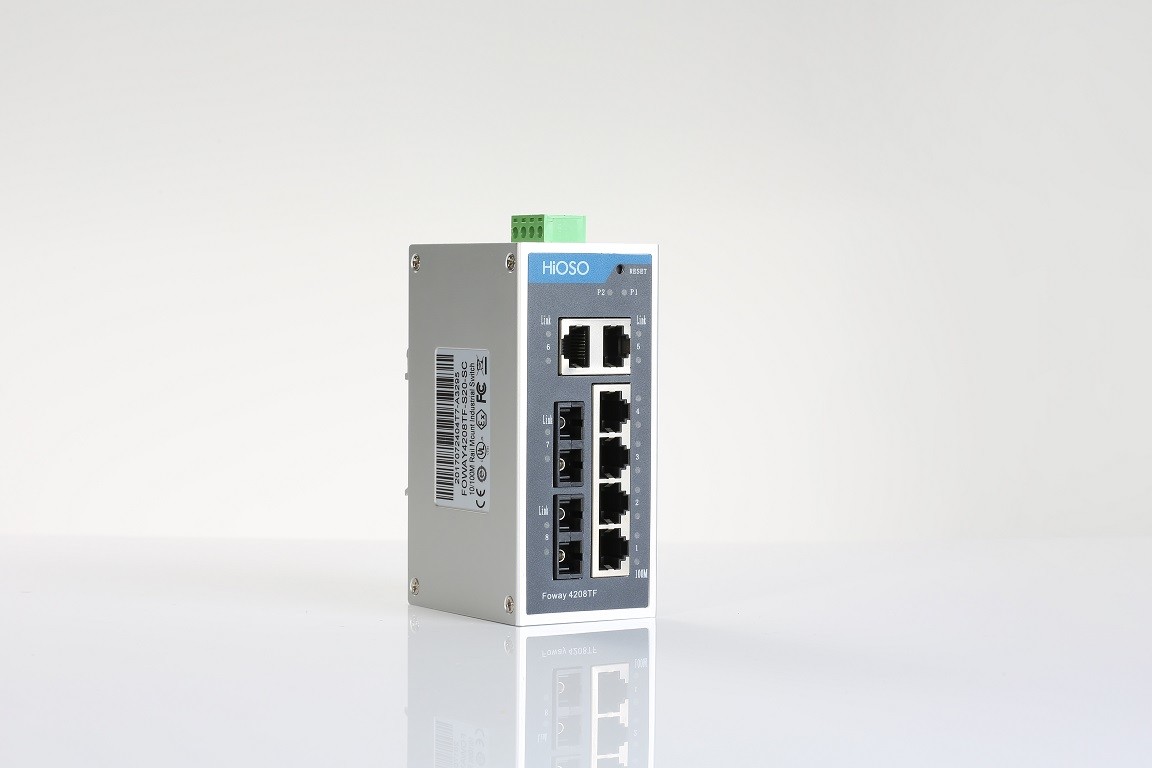

FOWAY4208TF 2 100M FX + 6 10/100M RJ45 Din Rail Ethernet switch
Overview
Foway 4208TF series 8 ports Din Rail Type Industrial Ethernet switch, supply 6 10/100M RJ45 ports and 2 100M fiber uplink; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC,support to connect DC power and AC power at the same time.
Foway 4208TF series switches support to work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for most industrial applications. Foway 4205TF series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications.
Character
l 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition
l 100M fiber port, supports muti-mode, dual-fiber single-mode and single-fiber single-mode fiber, maximum distance 120km
l Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection protection
l Support maximum 1552 byte long frame data packet transmission
l DIP switch supports to enabled/disable broadcast storm function
l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
l With IP30 metal case; support din rail or wall mounting installation
Technical Specification
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m |
| Port | 6 RJ45 ports: 10/100M 2 100M FX ports: Multi-mode – SC or ST (fiber size: 50,62.5/125μm)
Single mode/single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | FX 100M (fiber rate 100M), TP1/2/3/4/5/6 100M (twisted pair rate 100M) , TP1/2/3/4/5/6 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected), RESET |
| Power | 12/24/48 VDC,18 ~ 30VAC input |
| Power consumption | 4W |
| Operating temperature | Normal:-10~60°C ;-T(wide range temperature: -40~75°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~85°C |
| Storage humidity | 5%~95% (non-condensing) |
| Installation | Din rail installation, wall mounting installation |
| Dimensions | 115mm×50mm×70mm (height * width * depth) |
Order information
| No | Product code | NMS | Ports | Power |
| 1 | Foway4208TF-M2-SC | No | 6FE+ 2 100M multi-mode FX SC ports | DC12-48V |
| 2 | Foway4208TF-S20-SC | No | 6FE+ 2 100M dual-fiber multi-mode 20km SC | DC12-48V |
| 3 | Foway4208TF-S220-SC-T1310 | No | 6FE+ 2 100M dual-fiber single-mode 20km SC | DC12-48V |
| 4 | Foway4208TFM-M2-SC | YES | 6FE+ 2 100M multi-mode FX SC ports | DC12-48V |
| 5 | Foway4208TFM-S20-SC | YES | 6FE+ 2 100M dual-fiber multi-mode 20km SC | DC12-48V |
| 6 | Foway4208TFM-SS20-SC-T1310 | YES | 6FE+ 2 100M dual-fiber single-mode 20km SC | DC12-48V |
Product Tags:
|
|

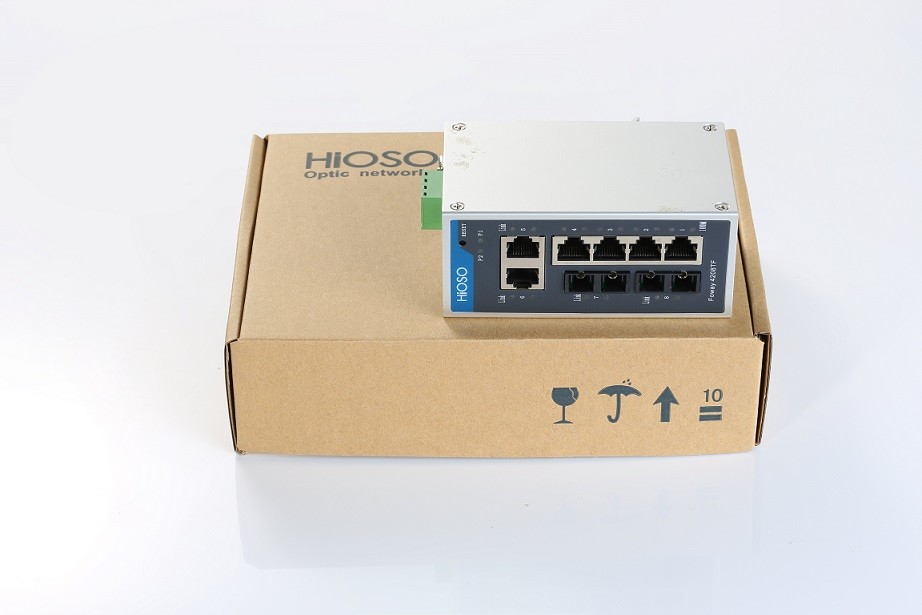

120km Transmission 6 10/100M RJ4 2 100M FX Din Rail Ethernet Switch 8 Ports Images
|
