AC220V POE Switch

Name: AC220V POE Switch
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : Foway2518PFSP

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Supply Ability : 2000pcs/month

Delivery Time : 3-10 working days

Packaging Details : 54X32X18 cm

Name : 18 ports poe switch

Management : WEB and SNMP

Power : AC110V/220V

Error rate : <1/1000000000

MAC : 8K

Ports : 18 ports

Contact Now

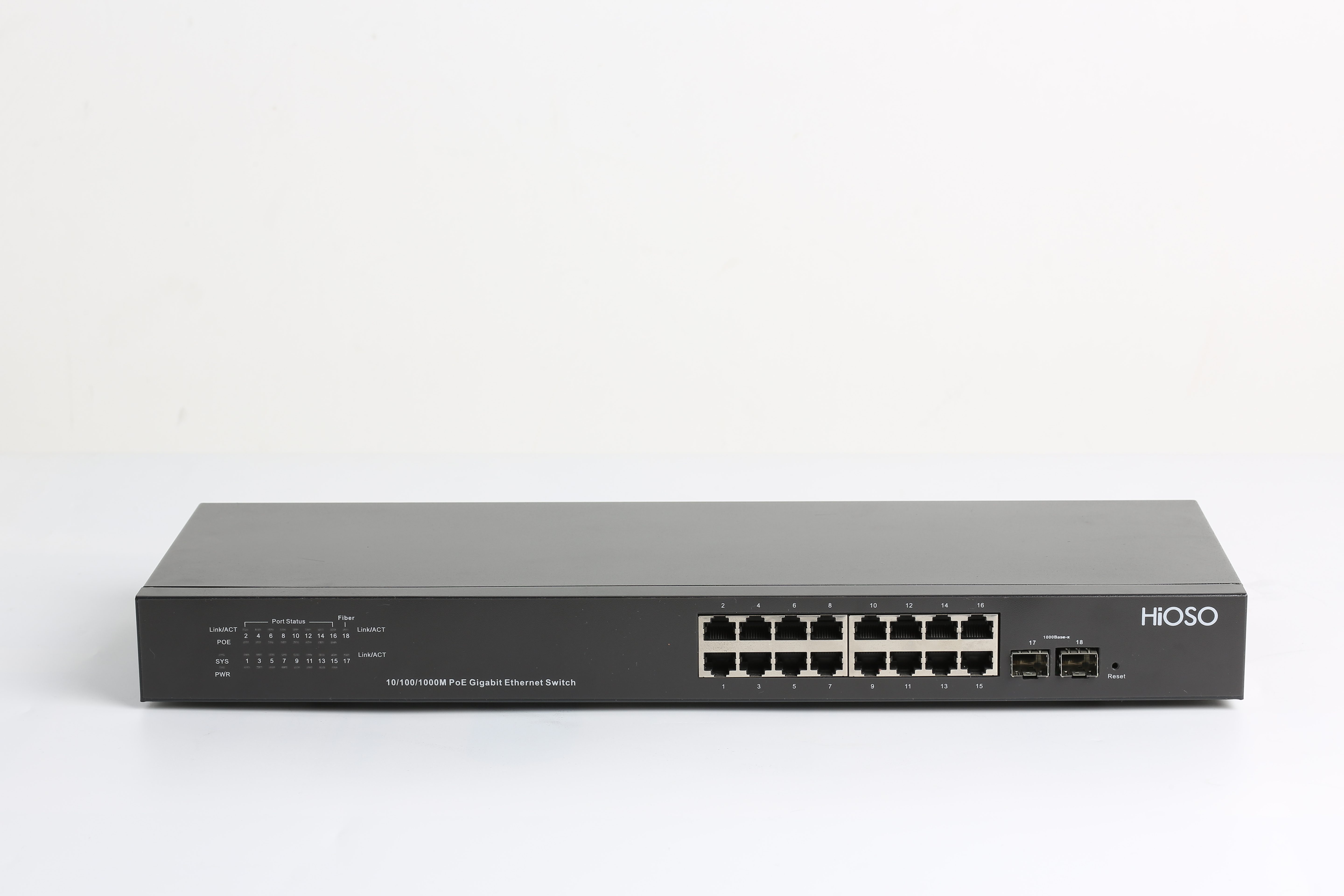

18 Ports Poe Switch 16 10/100/1000M PoE Ports + 2 1000M SFP Ports

Overview

HiOSO Foway2518PFSP series 18 ports 1000M Security Industrial PoE Ethernet Switches, supply 16 10/100/1000M RJ45 PoE ports and 2 1000M SFP uplink ports; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Character

Support 16 10/100/1000M RJ45 PoE ports and 2 1000M SFP Uplink ports
Each PoE port supports auto detect the powered device
Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
Support each port full rate, full-duplex non-blocking forwarding
Support WEB management and SNMP (optional)
8K MAC learning, 4Mbit storage and forward cache space,56G back plane bandwidth
1U rack design, with inside fan, better for heat dissipating and installation

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree,IEEE802.1w RSTP,IEEE802.3ad Trunk,DHCP (optional), IEEE802.3af,IEEE802.3at
PoE	16 1000M PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W
Wavelength	850nm/1310nm/1490nm/1550nm/
Transmission distance	1000M Fiber, multi-mode:220m(fiber size 62.5/125μm) /550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km; Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports	16 1000M RJ45 ports (POE/PSE);2 1000M SFP ports (support copper SFP)
MAC	8K
Buffer memory space	4Mbit
Bit error rate	<1/1000000000
Power	AC110V/220V@50HZ/60HZ
Power consumption	Whole device:10W POE/PSE: maximum247W
Working temperature	Common:-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Installation	1U rack
Dimension	44mm (H)×440mm(W)×160mm (D)
